True Centrifugal Pipe & Cylinder Casting
Sush Tech delivers high-integrity **Centrifugal Casting** structural supply assets optimized for hollow, cylindrical components. By using intense rotational G-forces during the fluid solidification timeline, this method guarantees completely uniform grain distribution.
Because centrifugal rotation naturally forces lighter elements, slag impurities, and microscopic gases toward the hollow center bore, the outer diameter retains an ultra-dense, defect-free structure. This structural advantage effectively eliminates directional weakness patterns across critical industrial piping frameworks.
Our Centrifugal Engineering Sequence
Mold Preparation & Rotation
A permanent cylindrical steel die mold is pre-heated, coated with a ceramic thermal barrier, and set spinning at extremely high speeds on a horizontal or vertical axis platform.
Molten Metal Injection
Precisely alloyed liquid metal is poured directly into the spinning die cavity. The intense centrifugal force immediately pushes the heavy metal outward against the mold walls.
Directional Solidification
The metal cools under constant pressure from the outside diameter inward. Impurities and lighter oxides are forced to the inside layer, leaving a dense outer metallurgical structure.
Extraction & Core Boring
Once cooled and stopped, the cast tube is pulled from the mold. The inner layer, along with any trapped impurities, is machined away to leave a clean interior surface.
Key Benefits of Centrifugal Casting
Ultra-High Material Density
The consistent pressure from rotational forces completely eliminates porosity and gas pockets, producing a dense metal structure.
No Sand Cores Required
True hollow bores are naturally created by centrifugal forces, bypassing the need for sacrificial sand cores on interior cylindrical profiles.
Impeccable Grain Structure
Offers outstanding mechanical properties and tensile strength, delivering performance similar to forged components.
Specialized Centrifugal Cast Parts

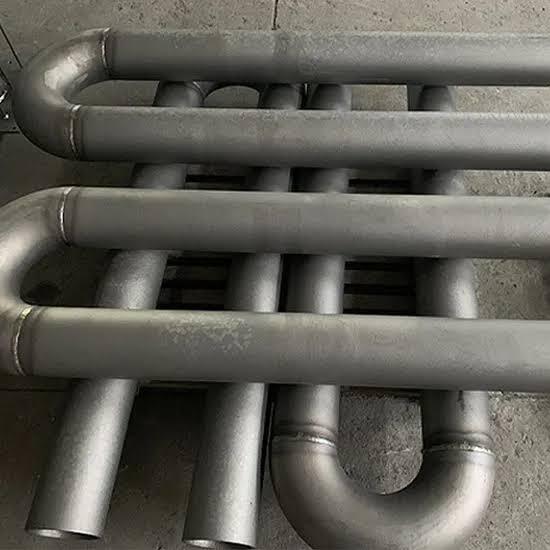

High-Temperature Radiant Tubes
Alloyed radiant reform heater pipes designed with uniform wall dimensions to survive massive thermal cracking environments.

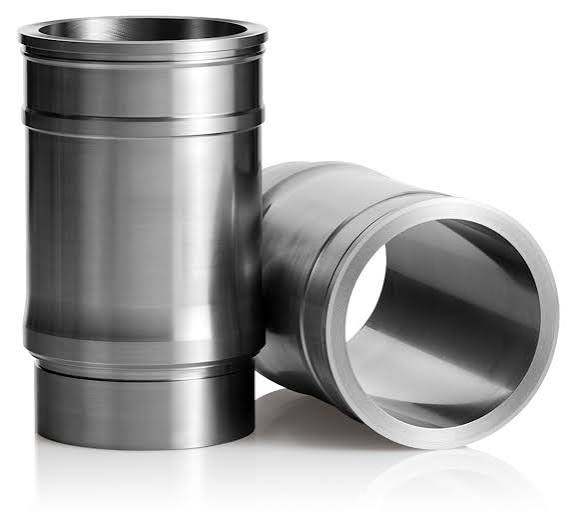

Heavy Duty Cylinder Liners
Wear-resistant engine block sleeve cylinder parts manufactured with stable microstructure parameters to maximize runtime efficiency.

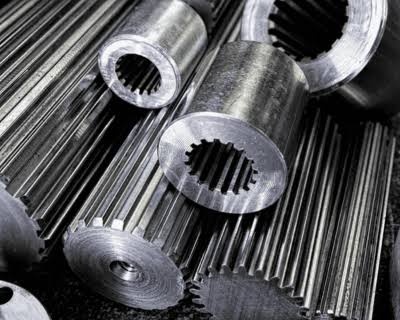

Large Diameter Sleeves & Bushings
Bi-metal non-ferrous alloy sleeves and industrial bearing bushings designed for seamless operations in heavy machinery fields.
Product Component Gallery
Technical Specifications Capabilities
| Parameter Criteria | Sush Tech Centrifugal Operational Limits |
|---|---|
| Outer Diameter (OD) Scope | Flexible mapping capabilities ranging from 50 mm up to massive 1500 mm bounds |
| Max Casting Tube Length | Continuous single-pour lengths reaching up to 5500 mm based on structural requests |
| Material Availabilities | High-Nickel Heat Resistant Alloys, Stainless Steels, Wear Resistant Irons, Phosphor Bronzes |
| Concentricity Parameters | High geometric stability with precision center boring execution tolerances |
| Defect Screening Protocols | 100% Eddy Current scanning, Dye Penetration mapping, Hydrostatic pressure validations |
